Song Hanh Pre-Painted Steel
Pre-painted steel manufactured by Song Than Steel Co., Ltd. adheres to the JIS G3322 with smooth and glossy surface. It’s also resistant to scratches and corrosion from the weather.
Manufactured on a modern manufacturing line, pre-paint steel is suitable for a variety of applications with properties such as anti-stain and anti-fingerprint; resistant to peeling and scratches during cutting and shaping processes. Its light weight and appealing aesthetics make it an ideal choice for roofing purposes and other residential applications.
Song Than Steel Co., Ltd. Brochure
For further information on our products and production capability, please kindly visit our brochure.

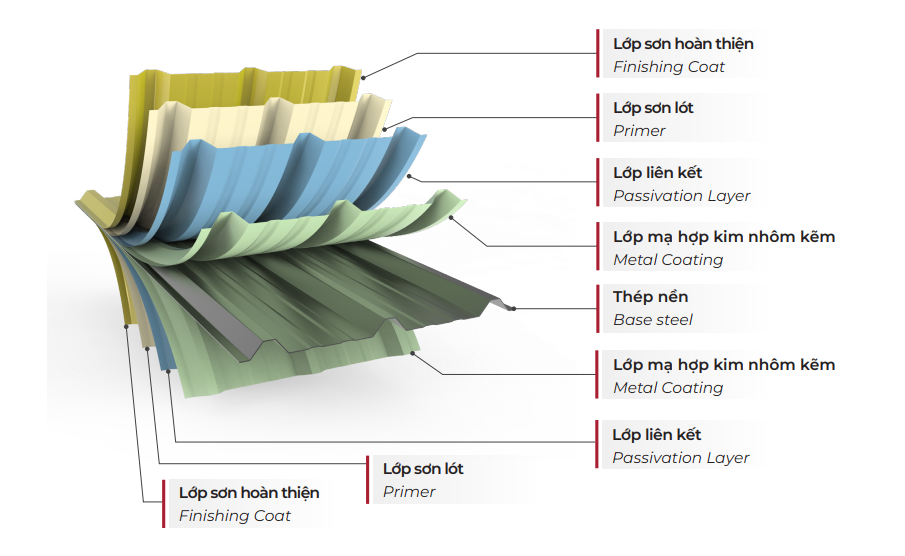

The makeup of colour-coated steel
Pre-painted steel is comprised of mild steel as the base layer, the protective metal-coating and finally the paint layer. Mild steel allows for ease of shaping processes while the metal coating protects the steel from corrosion and the paint layer gives the product a more appealing appearance.
| Product Specification | |
|---|---|
| Production Method | Continuous-Colour Coating |
|
Production Standard |
JIS G3322 or according to customer requirements |
| Thickness | 0.1 – 1.0mm |
| Width | 600 – 1280mm |
| Inner Diameter | 508 (±10)mm |
| Coil Weight | 3 – 5 Mts |
| Gloss | According to customer requirements |
|
Paint Type |
KCC, AK Vina, according to customer requirements |
| Pencil Hardness Test | ≥ 2H, no scratches on paint surface |
| T-Bend | No peeling of the paint player |
| Back Side | Primer: 5-10µm | Finishing Coat: 10-15µm |
| Top Side | Primer: 5-10µm | Finishing Coat: 5-20µm |
| MEK Test | ≥ 100 DR |
| Salt Spray Test | Top Side ≥ 500 giờ | Back Side ≥ 200 giờ |
